LIVE TV Channels - IPTV Headend
The output of the streamer modules is an IP-stream and is fed to a broadband network through an Ethernet switch and other system elements.
- Support the widest range of digital TV standards, including DVB-S/S2, DVB-T/T2, AV
- IP multicast streaming enables delivery of TV and radio channels to an unlimited number of endpoints
- Compatible with SD and HD, with MPEG2 and MPEG4
- Flexible: tailor-made configuration
- Future proof: configuration upgradable
Modules
Our different modules helps you to create the perfect IPTV Headend for your needs.
Satellite Modules
820E: IPTV-DVB-S2-2CI-32
DVB-S(2) to IP, 4 sat inputs, 8 tuners, 8 transponders, 2 CI Slot, up to 32 SPTS channels
822E: IPTV-DVB-S2-2CI-48
DVB-S(2) to IP, 4 sat inputs, 8 tuners, 8 transponders, 2 CI Slot, up to 48 SPTS channels
824E: IPTV-DVB-S2-2CI-64
DVB-S(2) to IP, 4 sat inputs, 8 tuners, 8 transponders, 2 CI Slot, up to 64 SPTS channels
Terrestrial Modules
DVB-T(2) to IP , 1 RF input, 1 tuner, 1 multiplex, 1 CI Slot, output up to 4-6 SPTS streams, Max 100 Mbps output bitrate
MPTS IP to DVB-T/C
IP to DVB-T, 4 MPTS inputs, 4 COFDM Mux output
or
IP to DVB-C, 4 MPTS inputs, 4 QAM Mux output

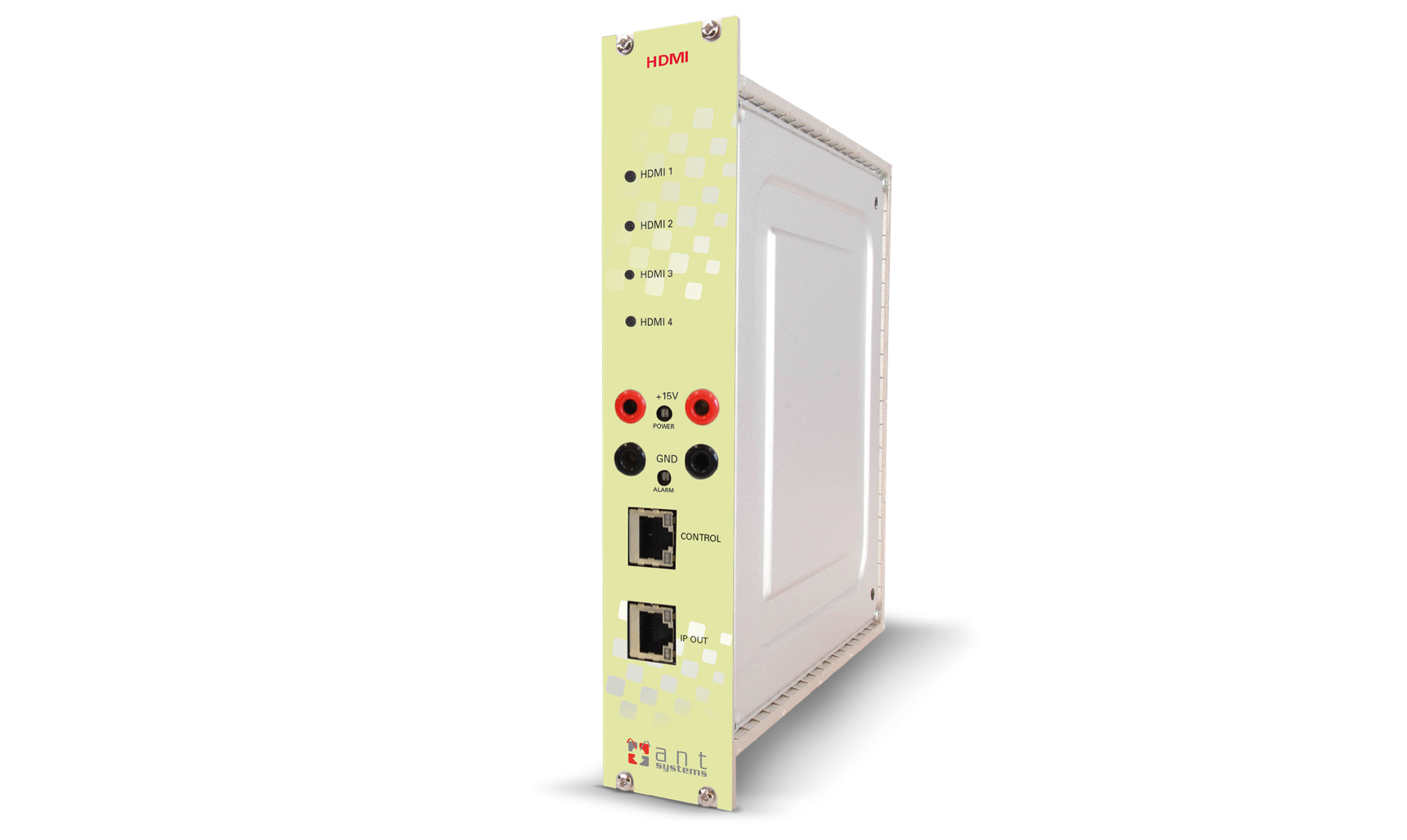

HDMI AV Modules
840E: IPTV-A/V-HDMI-4
AV to IP, 4 inputs HDMI, 4 MPTS or 1 SPTS outputs

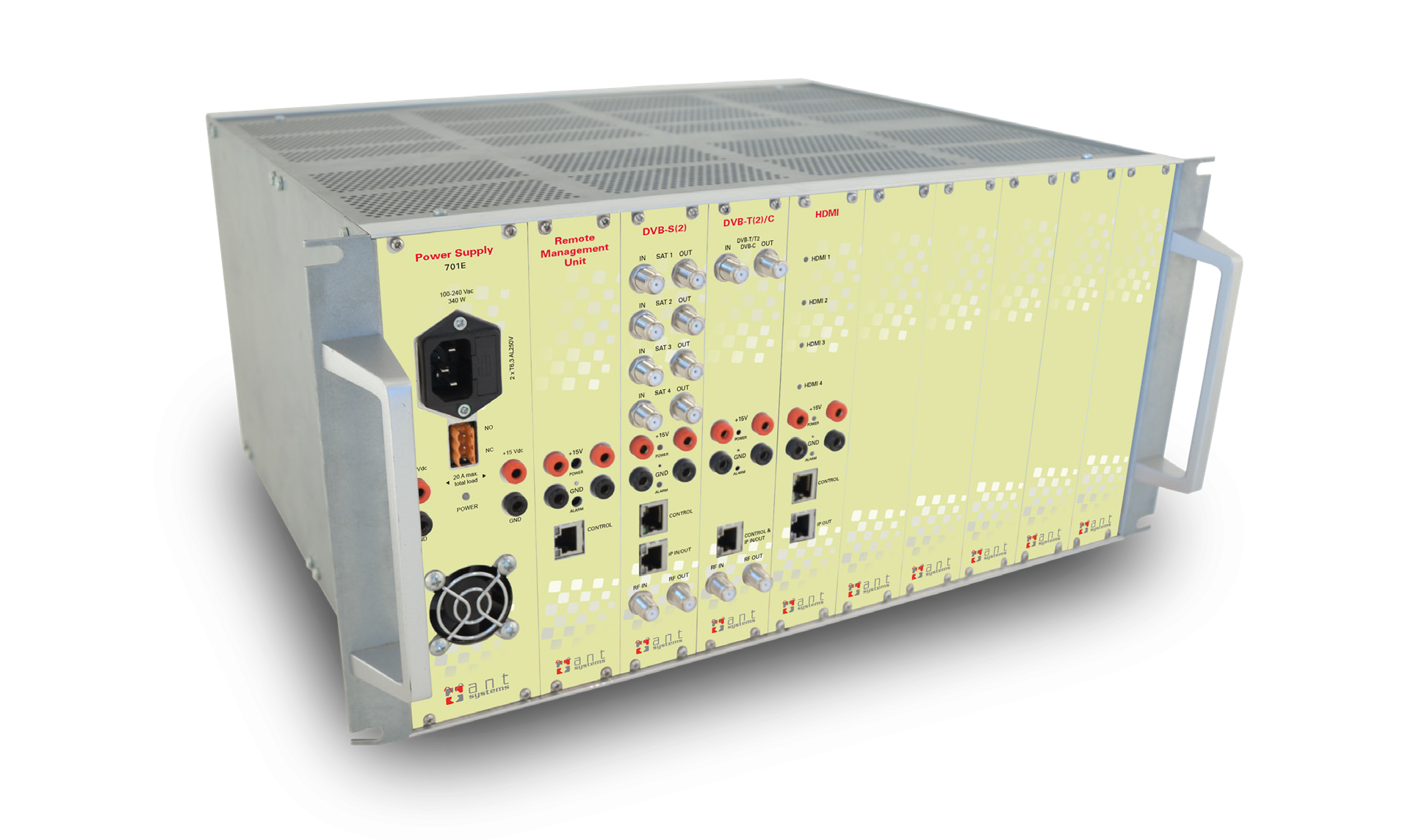

Rack & Accessories

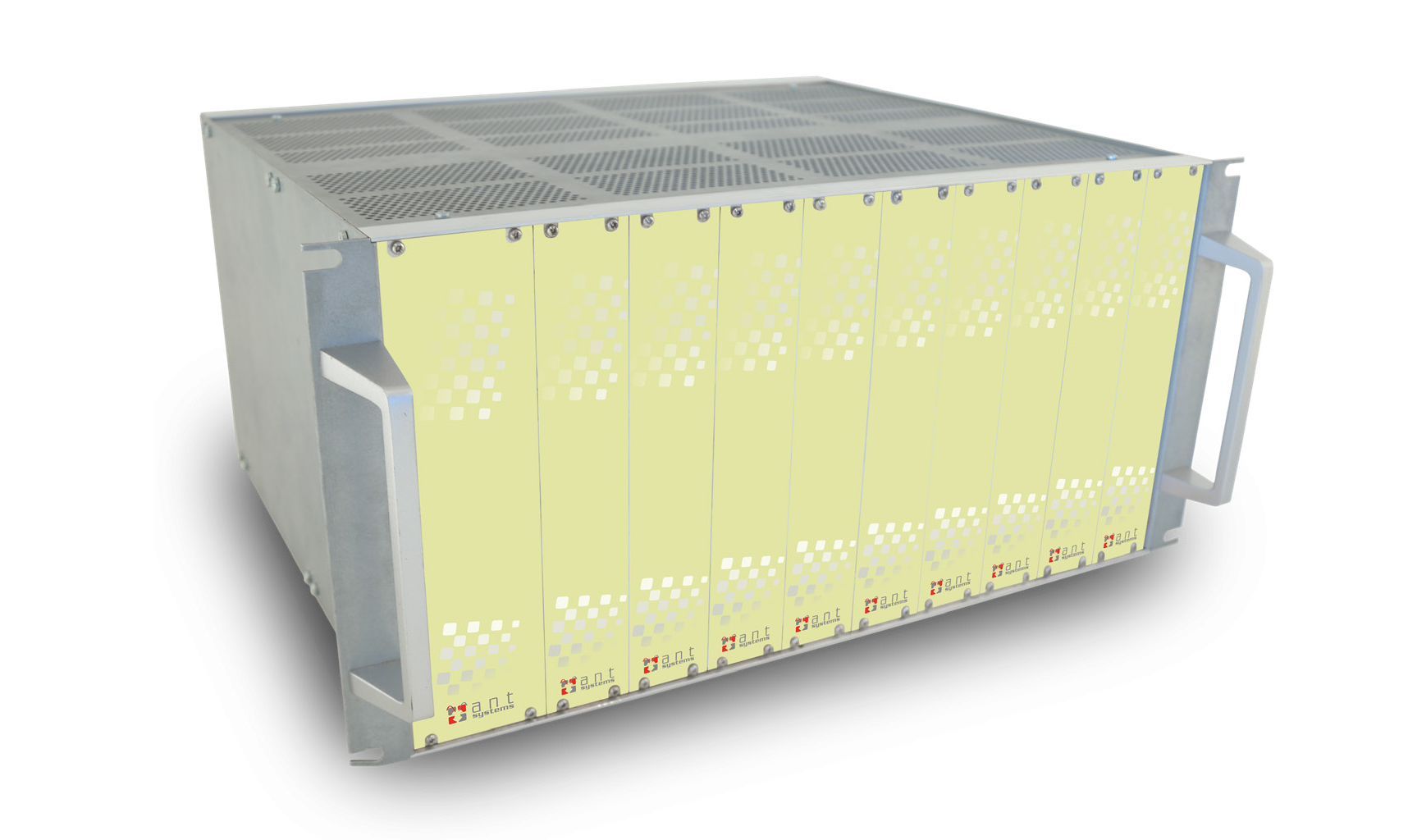

19" Rack
711E: 19” rack (5U) depth 367 mm
Rack 19” x 5 RU x 367 mm

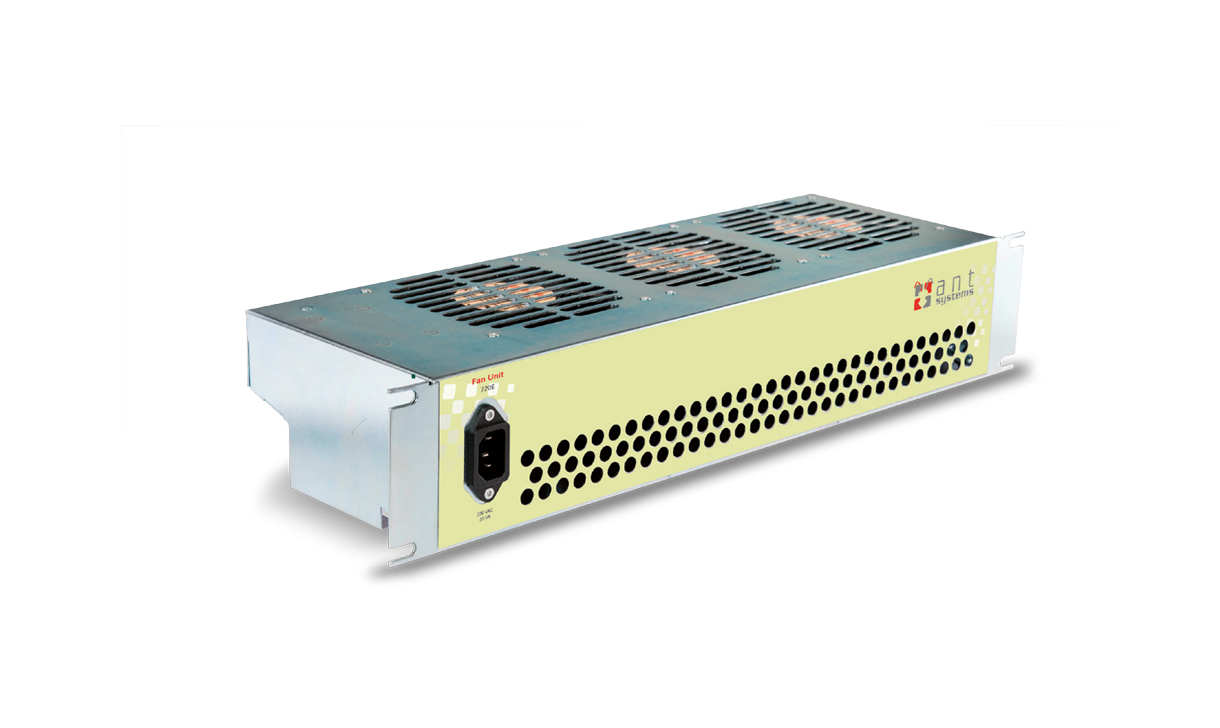

Fan Unit
Fan 19” x 2 RU x 155 mm

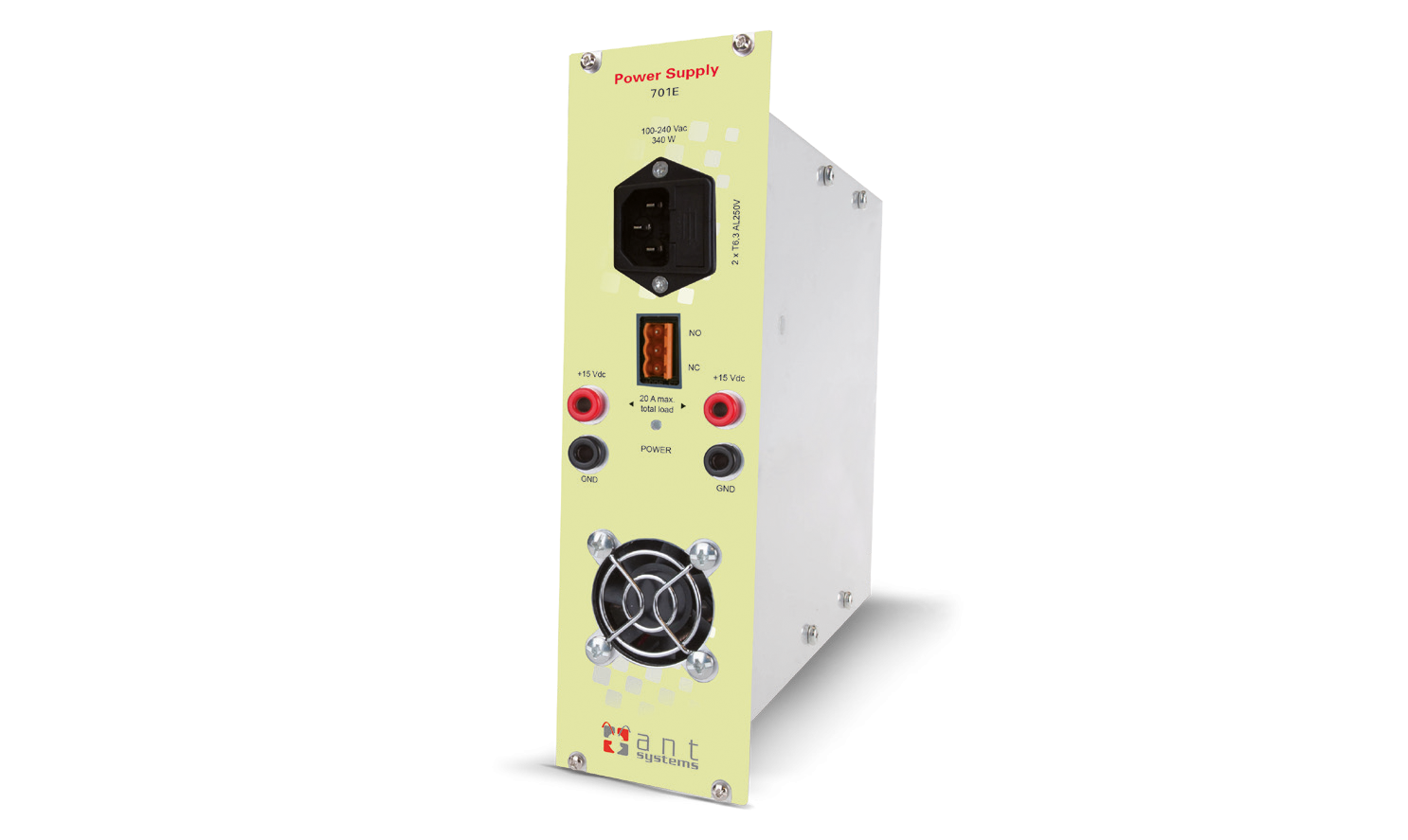

Power Supply
Redundant Power supply 15 VDC / 20 A

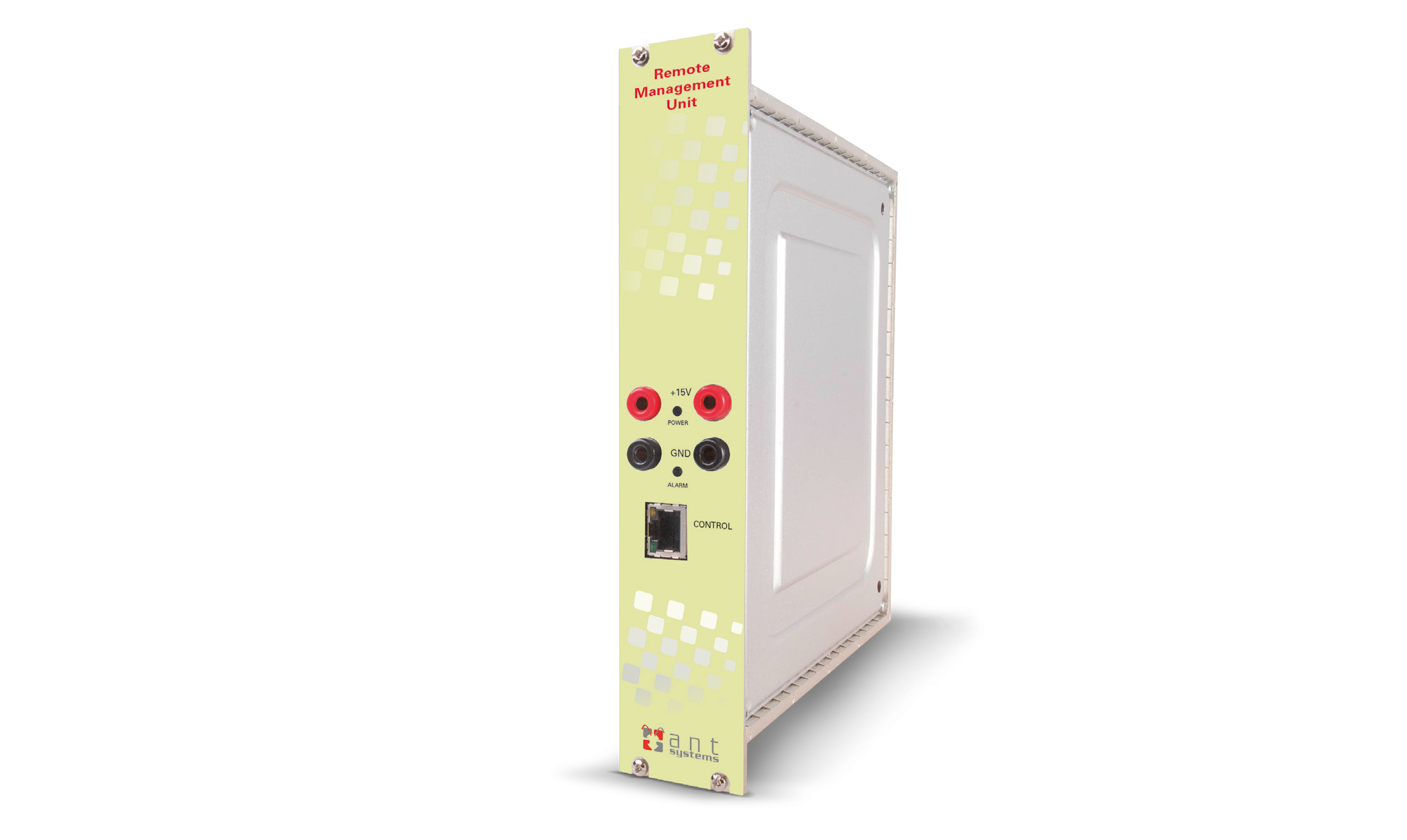

Remote Management Module
920: HW-RMM
Hardware Remote Management Module
930: SYF-RMM
Yearly license fee software Remote Management Module
